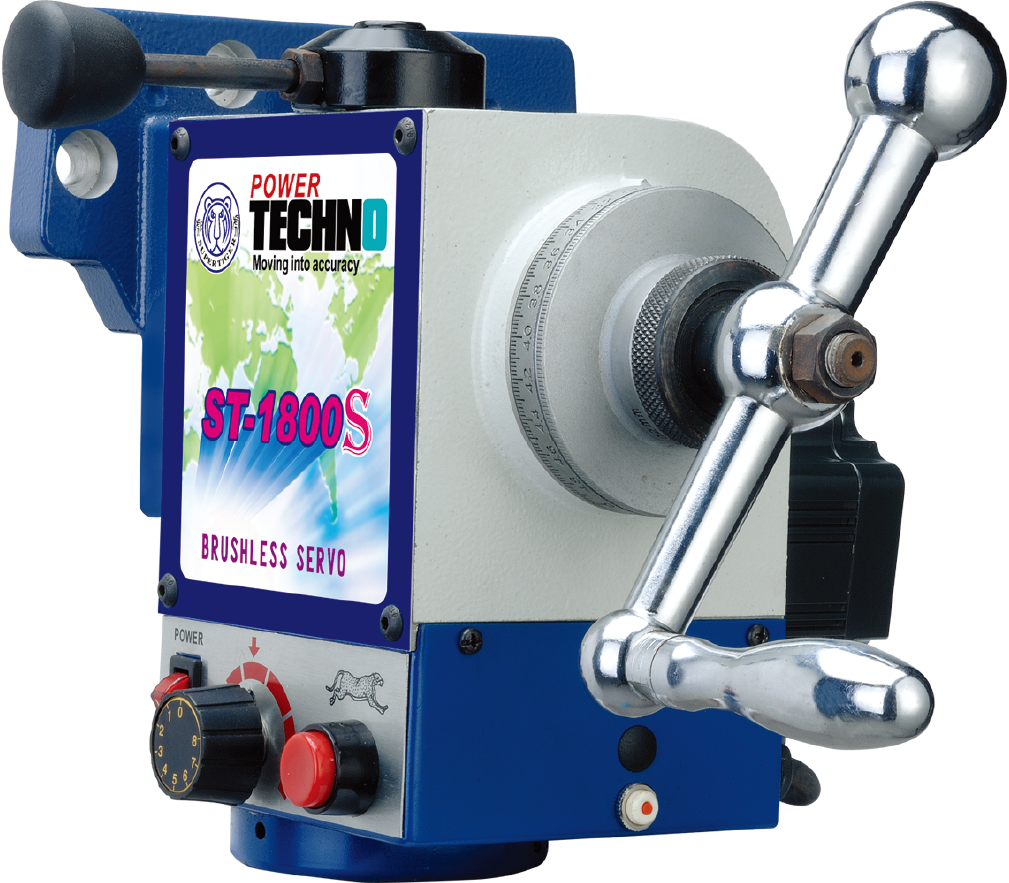

ST-1800
|
Combination of mechanical and electrical device, mechanical construction and electrical convenience, that is designed for long & overtime operation and easy installation.
|
|
Traditional Power Feed
|
1.Uneasy change speed
2.Heavy Weight
3.High price
|
|
Electrical Power Feed
|
1.Low mechanical strength
2.Easy operation but unable to operate long or over time
|
|
Plastic gear design
|
|
ST-1800
|
1.Resolve problem of breaking plastic gear by using full gear & worm contacting design.
2.Enlarge machine’s life-span by using high torque vortex stem gear design
|
|
Traditional Power Feed
|
M0.8 helical gear design easily causes plastic gear broken during high-speed operation.
|
|
Motor design
|
|
ST-1800
|
Enlarged with higher horsepower at 180W, reduced motor rotational speed between 0~6000rpm, activating electric current below 2A, with normal operation temperature under 50°C, and decreasing heat coefficient to increase mechanical parts' life-span.
|
|
Traditional Power Feed
|
Low horsepower between 70W~90W and high motor rotational speed between 0~16000rpm design that easily generates heat during high-speed operation and large activating electric current reduce mechanical parts’ life-span.
|
